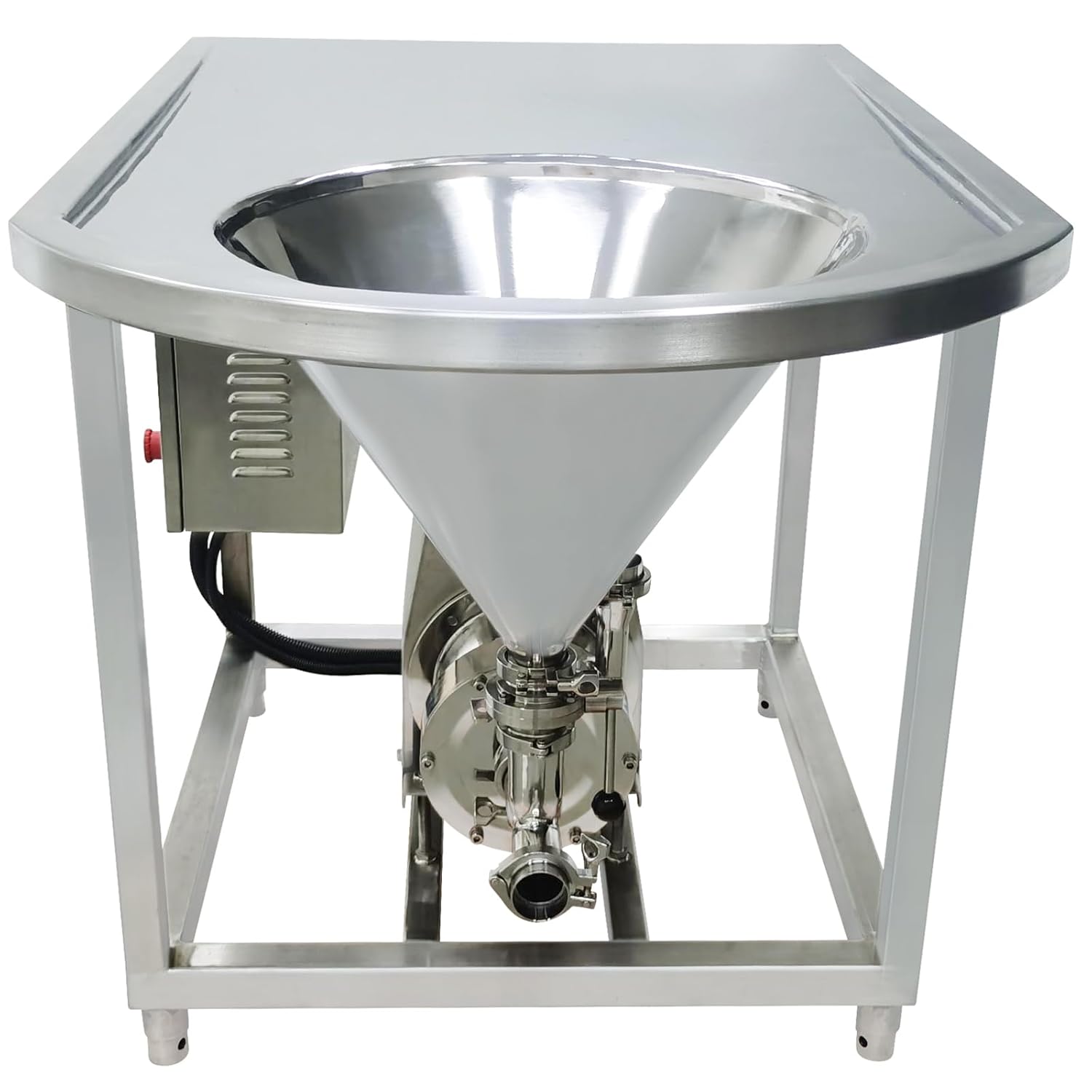

INTSUPERMAI 220V High Shear Emulsifying Pump Homogenizer Emulsifier Stainless Steel High Shear Dispersion Mixer 4KW Emulsion Pump with Funnel Stand 3400 RPM 0-4T/H for Mixing Dispersion Emulsification

Parameters: Voltage: 220V; Three-phase Frequency: 60Hz Power: 4KW(5.36HP) Speed: 3400r/min Flow range: 0-4T/H Inlet: 51mm (2'') Outlet: 51mm (2'') Material: 304 stainless steel Machine size: 47.24x31.5x36.61in (1200x800x930mm) Net weight: About 140kg (308.65LBS) Shipping weight: 410lb Shipping size: 51.18x37.01x43.31in Package Content: One set of 220V Three-phase Industrial High Shear Emulsifier Homogenizer Pump Stainless Steel Dispersion Mixer Machine Operation and Use: 1. The cooling water is usually connected before the machine is started, and the cooling water is closed and then can be used. 2. The cooling water pressure is less than 0.2Mpa. 3. The material must enter the working chamber, and the machine can be switched on. It is also necessary to ensure that it does not run in the condition of material failure, so that idling and mechanical sealing are avoided. (A current protector is added when the emulsion pump is connected, so that burnout or the bad influence on the service life is avoided.) 4. A current protector is added when the emulsion pump is connected.

• High-Efficiency Emulsification & Mixing: 220V Three-phase Electricity Design; Powered by a 4KW motor with 3400 RPM speed, this industrial homogenizer pump ensures rapid and uniform dispersion, emulsification, and mixing of materials, ideal for continuous production in cosmetic, pharmaceutical, and food industries
• Durable & Sanitary 304 Stainless Steel Construction: Entire machine is crafted from food-grade 304 stainless steel with polished surface, the high shear mixer offers excellent rust and corrosion resistance, meeting strict hygiene standards for safe material processing
• Wide Flow Range & Stable Performance: Our homogenizer emulsifie pump features a flow range of 0-4T/H with 2-inch inlet/outlet ports, ensuring smooth material handling without blockage. The stable supporting frame enhances safety and reduces vibration during operation
• User-Friendly Design & Easy Maintenance: The dispersion emulsifier machine applies integrated control panel with speed adjustment and emergency stop switch. Pump head is easily detachable for quick cleaning, minimizing downtime and ensuring no residual
• Versatile Application: INTSUPERMAI emulsion pump Suitable for a variety of fields including bio-medicine, cosmetics, ink coatings, nano-materials, petrochemicals, and more, it can achieve uniform dispersion and emulsification of materials Compatible with most pipeline systems, designed for reliable, long-term use
